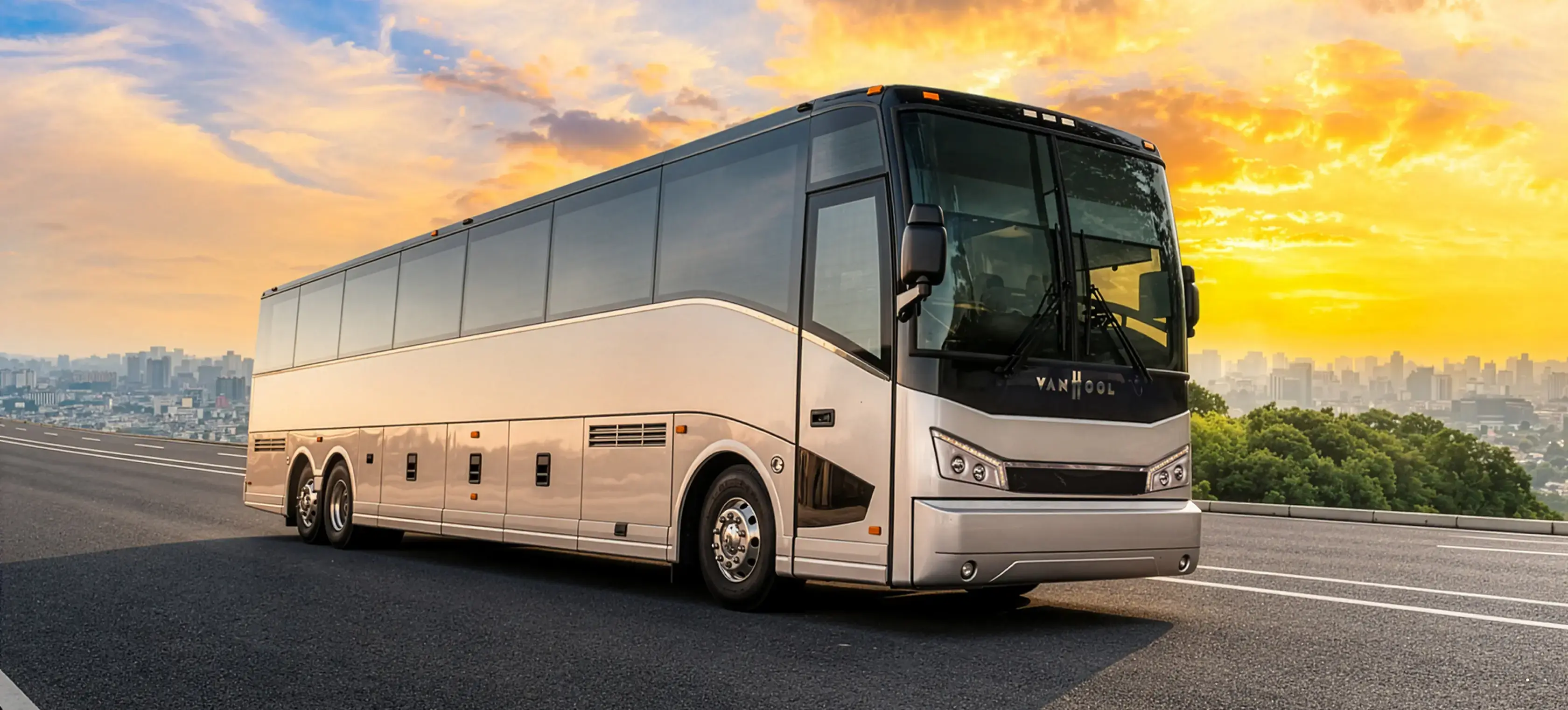

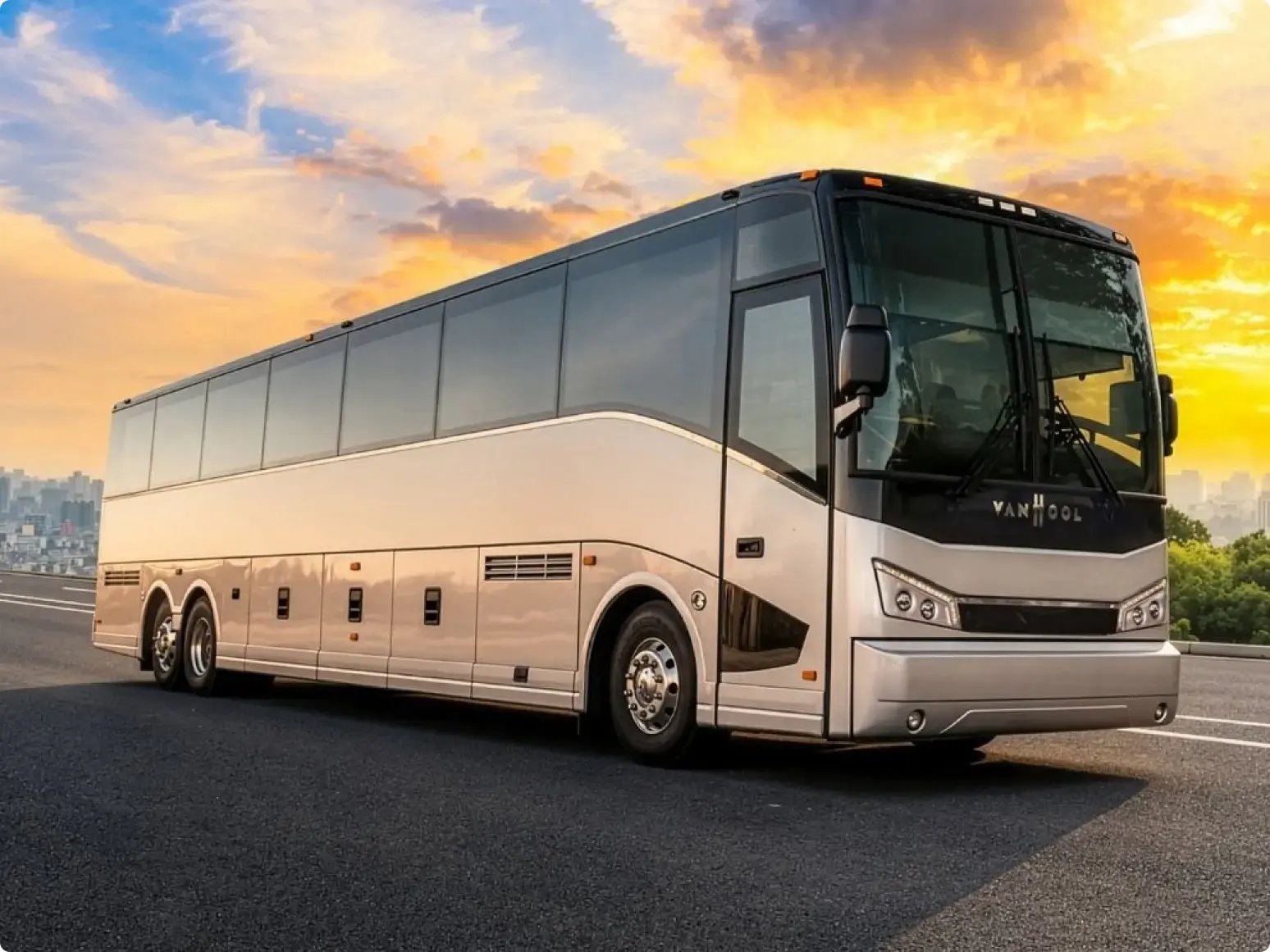

Van Hool CX45E Motorcoach

A full-size motorcoach. Battery-electric.

The Van Hool CX45E brings battery-electric power to a 45-foot motorcoach platform, with passenger comfort, luggage capacity and the familiar CX Series design for operators exploring zero-emission transportation.

Overview

Electric transportation built on the CX platform.

The Van Hool CX45E combines the full-size CX motorcoach platform with a battery-electric powertrain for operators evaluating electric transportation for applicable routes and duty cycles.

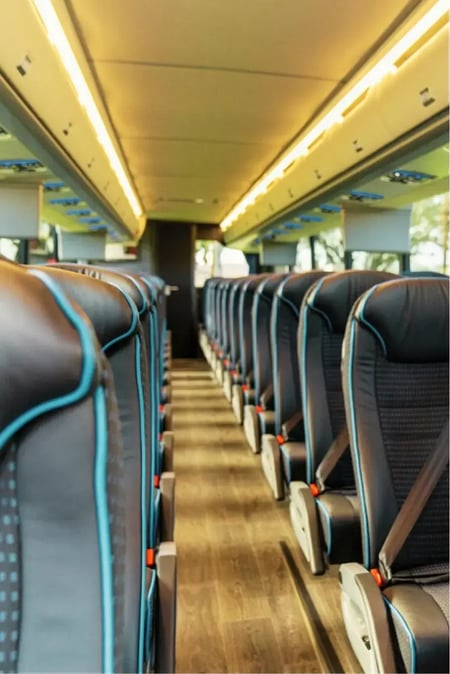

With seating for up to 60, passenger amenities and luggage space, the CX45E provides an electric motorcoach option without moving away from the passenger experience operators expect from a full-size coach.

Specifications

Key Specs
Key Specs CX45E
Length 45 ft
Height 11' 6"
Width 102"
Vehicle Traction System Siemens ELFA 2
Battery Type Proterra E2 Lithium Ion Batteries
Battery Capacity 676 kWh
GVWR 54,000 lbs.
Chassis Stainless Steel
Underfloor Storage Up to 182.93 cu. ft. without lift
Turning Radius 43' 11 1/2"
Brakes Six-Wheel Disc
Leveling System Electric Leveling Control with Overload Notification
Steering ZF Variable Ratio Steering
Wheelchair Lift Mid-Ship Position Wheelchair Lift Ready with Two Tie-Down Positions
Charging CCS-1 DC Fast Charge Port with Integrated Thermal Sensor
Energy Recovery Regenerative Braking System and Electrical Retarder with Energy Recuperation

Length

CX45E
45 ft

Height

CX45E
11' 6"

Width

CX45E
102"

Vehicle Traction System

CX45E
Siemens ELFA 2

Battery Type

CX45E
Proterra E2 Lithium Ion Batteries

Battery Capacity

CX45E
676 kWh

GVWR

CX45E
54,000 lbs.

Chassis

CX45E
Stainless Steel

Underfloor Storage

CX45E
Up to 182.93 cu. ft. without lift

Turning Radius

CX45E
43' 11 1/2"

Brakes

CX45E
Six-Wheel Disc

Leveling System

CX45E
Electric Leveling Control with Overload Notification

Steering

CX45E
ZF Variable Ratio Steering

Wheelchair Lift

CX45E
Mid-Ship Position Wheelchair Lift Ready with Two Tie-Down Positions

Charging

CX45E
CCS-1 DC Fast Charge Port with Integrated Thermal Sensor

Energy Recovery

CX45E
Regenerative Braking System and Electrical Retarder with Energy Recuperation
ABC Financial Services

Financing options built around your operation.

Explore financing and leasing options designed to support your budget, timeline and vehicle needs.

Plan beyond the vehicle.

Adding an all-electric coach also means planning where, when and how it will charge. ABC can help you evaluate charging needs, vehicle compatibility, site requirements and infrastructure considerations as part of your electrification plan.

Frequently Asked Questions

ABC is the exclusive North American distributor for Van Hool motorcoaches, including the CX35, CX45, TDX, CX45E electric motorcoach, and TDX25E all-electric double-deck coach. We also offer pre-owned motorcoaches from other manufacturers when available.

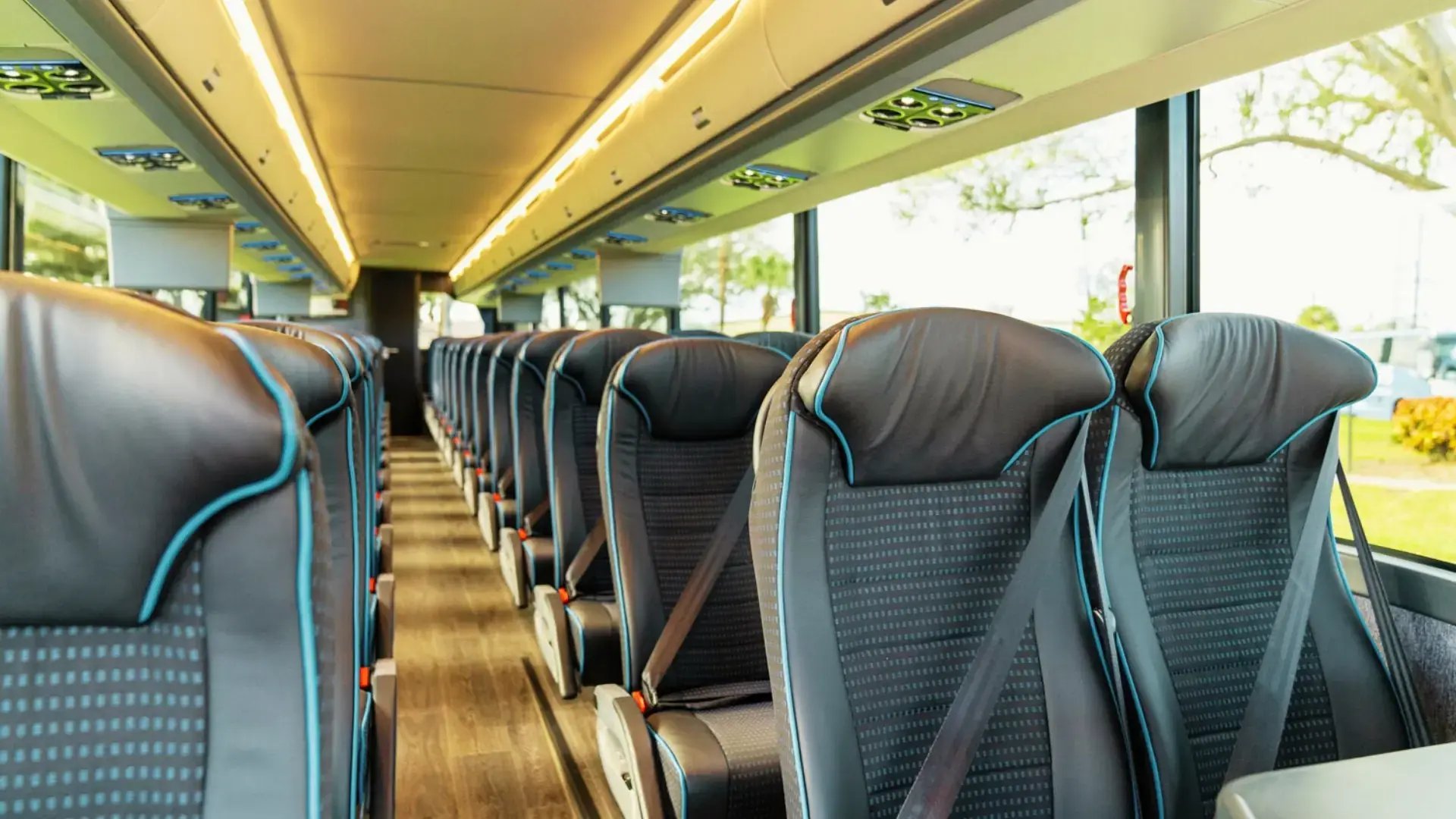

The Van Hool CX45E electric motorcoach offers seating for up to 60 passengers.

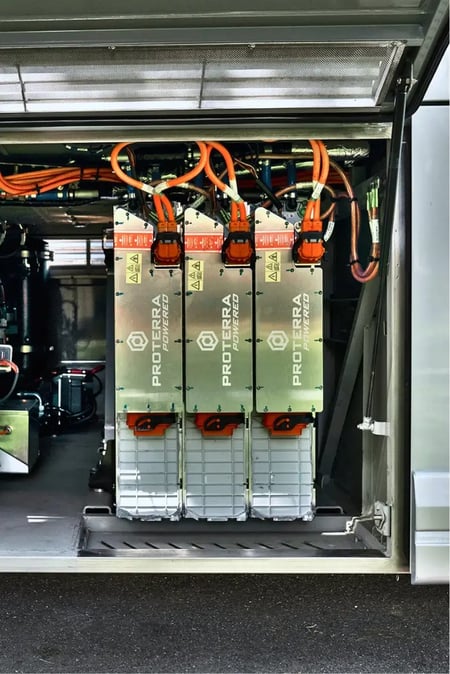

The CX45E pairs a 676 kWh Proterra E2 lithium-ion battery system with Siemens ELFA 2 electric traction technology.

The CX45E uses a CCS-1 DC fast-charge port and regenerative braking with energy recuperation.

The CX45E provides up to 182.93 cu. ft. of underfloor storage without a wheelchair lift.

Yes. The CX45E brings an all-electric, zero-emission powertrain to the 45-foot CX platform.
