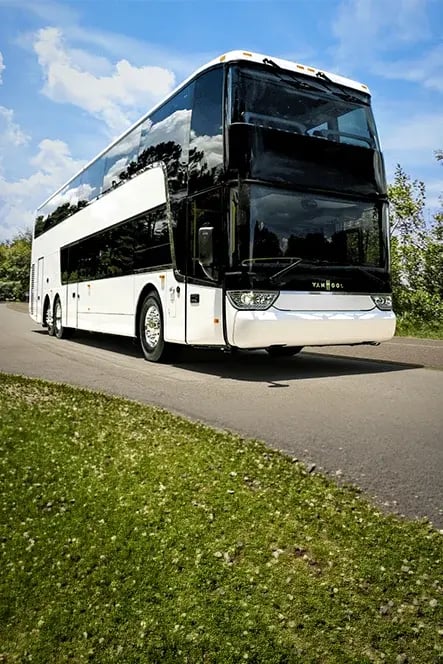

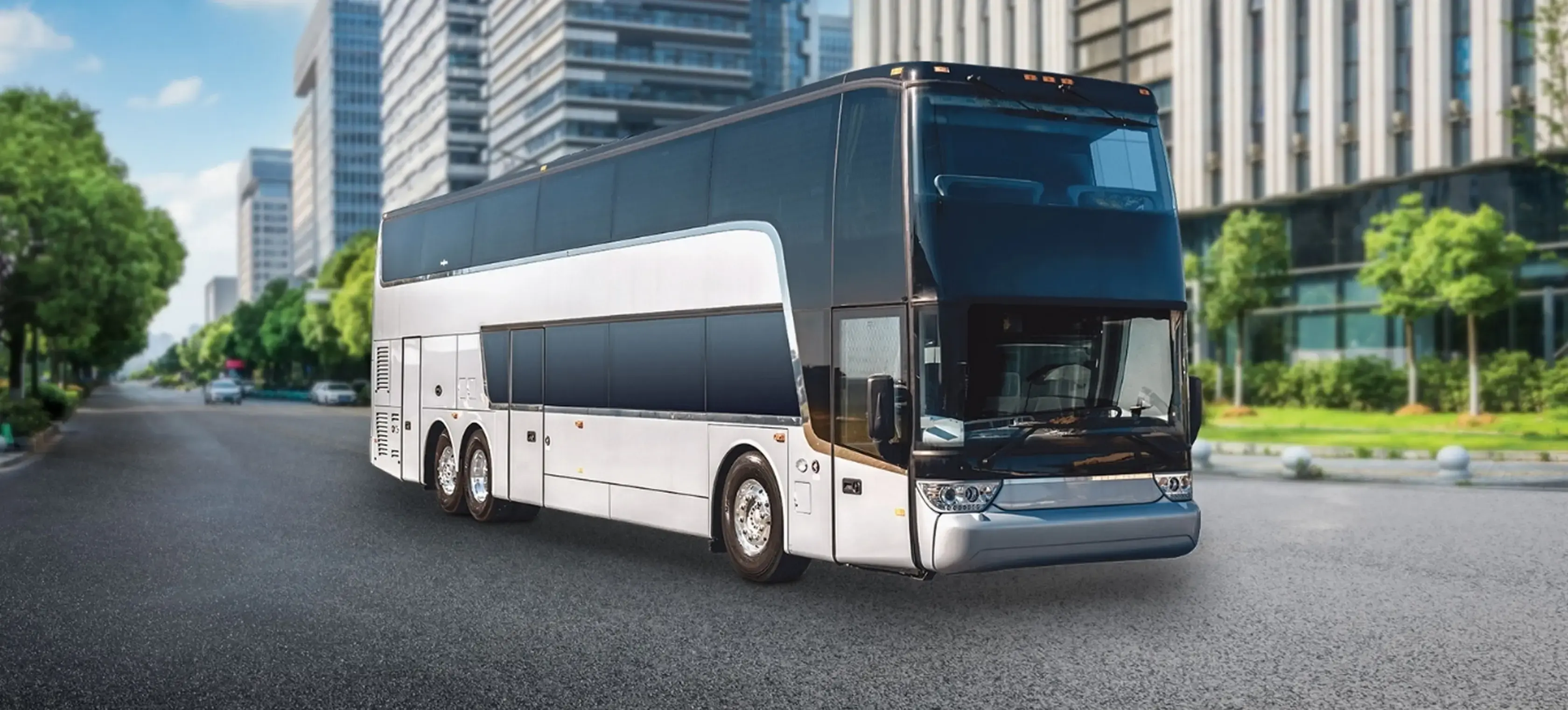

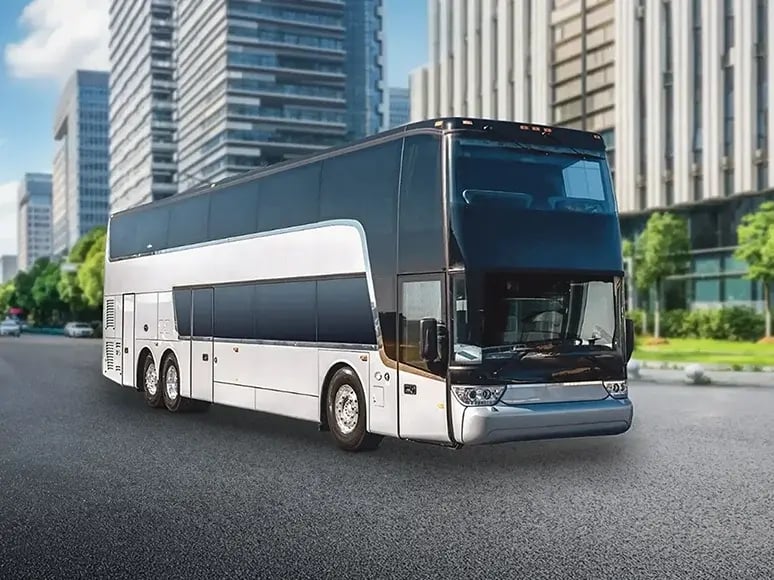

Van Hool TDX Motorcoach

More passengers. One double-deck coach.

With seating for up to 81 passengers, the Van Hool TDX gives operators more capacity in a single vehicle. Its double-deck design combines generous passenger space and coach amenities for high-volume routes, tours, events and group transportation.

Overview

High-capacity transportation across two levels.

When moving more passengers in a single vehicle matters, the TDX provides seating across two levels with the comfort and amenities of a motorcoach. Its 44-foot platform is suited for charter, tour, commuter, sightseeing, event and other high-volume transportation applications.

Specifications

Key Specs
Key Specs TDX

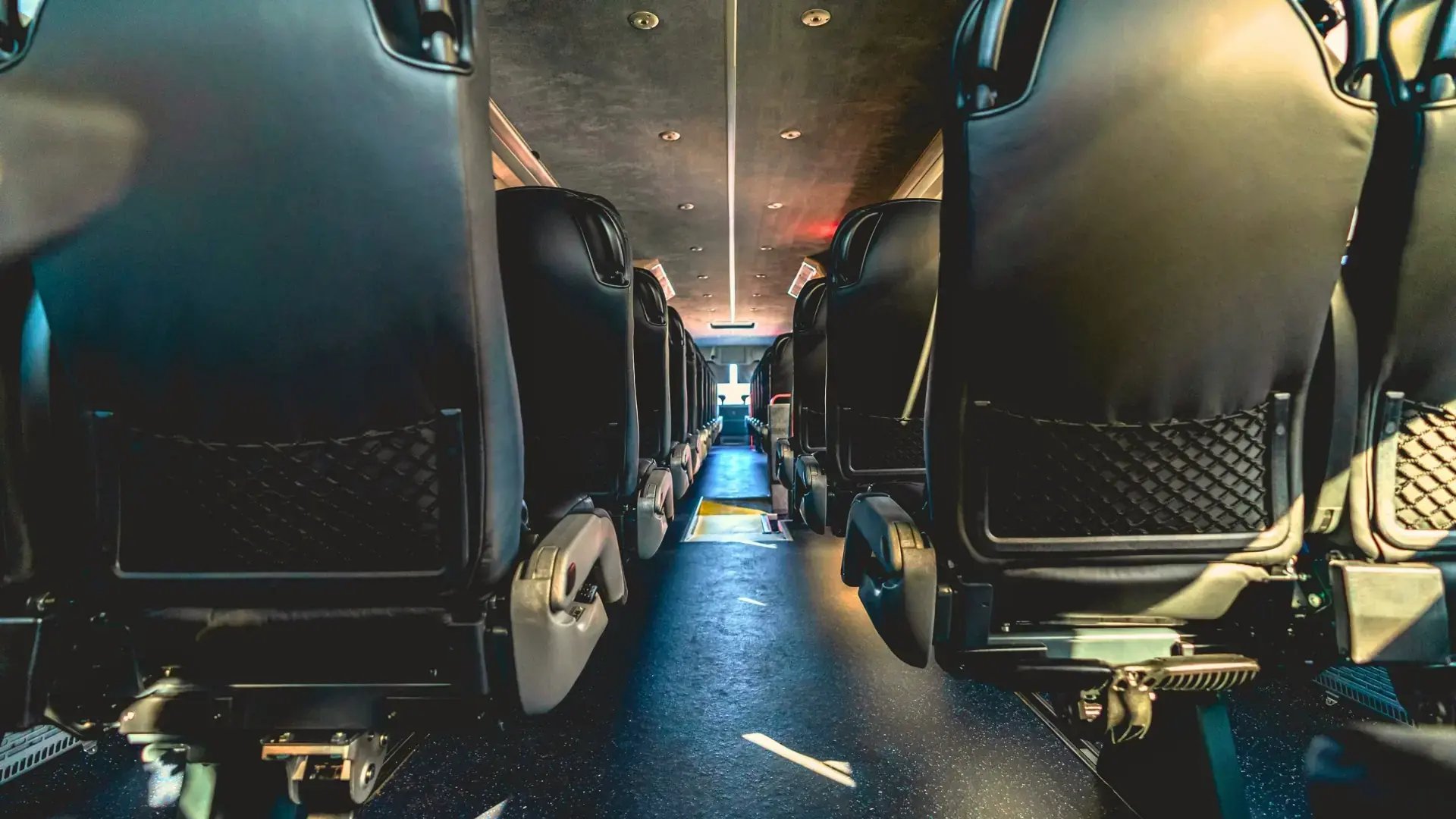

Max Capacity 81 passengers (59 Seats Upper Deck, 22 Seats Lower Deck)
Length 44’ 4-9/32”
Height 13’ 1-1/16”
Width 102”
Engine Cummins X12 (425 HP)
Transmission Allison B500R
GVWR 62,000 lbs.
Chassis Stainless Steel
Fuel Tank Capacity 166 gallons (usable)
Underfloor Storage Up to 279 cu. ft
Turning Radius 39' 4-1/2"
Brakes Six-Wheel Disc
Suspension Independent Front & Tag Axle Suspension with (ELC) Electronic Leveling Control
Steering ZF Variable Ratio Steering

Max Capacity

TDX
81 passengers (59 Seats Upper Deck, 22 Seats Lower Deck)

Length

TDX
44’ 4-9/32”

Height

TDX
13’ 1-1/16”

Width

TDX
102”

Engine

TDX
Cummins X12 (425 HP)

Transmission

TDX
Allison B500R

GVWR

TDX
62,000 lbs.

Chassis

TDX
Stainless Steel

Fuel Tank Capacity

TDX
166 gallons (usable)

Underfloor Storage

TDX
Up to 279 cu. ft

Turning Radius

TDX
39' 4-1/2"

Brakes

TDX
Six-Wheel Disc

Suspension

TDX
Independent Front & Tag Axle Suspension with (ELC) Electronic Leveling Control

Steering

TDX
ZF Variable Ratio Steering
ABC Financial Services

Financing options built around your operation.

Explore financing and leasing options designed to support your budget, timeline and vehicle needs.

Frequently Asked Questions

ABC is the exclusive North American distributor for Van Hool motorcoaches, including the CX35, CX45, TDX, CX45E electric motorcoach, and TDX25E all-electric double-deck coach. We also offer pre-owned motorcoaches from other manufacturers when available.

The TDX seats up to 81 passengers across its upper and lower decks.

The TDX is 44' 4-9/32" long, 102" wide, and 13' 1-1/16" high.

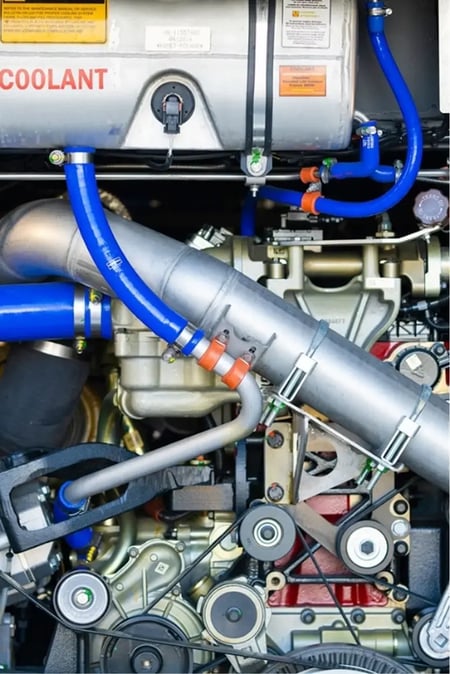

The TDX is powered by a 425-HP Cummins X12 engine paired with an Allison B500R transmission.

The TDX provides up to 279 cu. ft. of underfloor storage for passenger luggage and gear.

ABC supports Van Hool motorcoaches through its service network with maintenance, repair, parts, and technical support.

Ready to keep your operation moving?

From vehicles and parts to service, financing and ongoing support, ABC brings together the resources you need throughout the life of your vehicles.
